Suremark Single Station Printer

Retail hardened

Retail-hardened, spill-resistant design delivers high reliability in the harshest retail environments

Optimized design

All Toshiba peripherals are tested, engineered, color coordinated, provide latching connections, are compatible and optimized to work as a total store solution.

High compatibility

Epson Emulation and Compatibility Modes ease transition to new models and enable easy replacement of competitive printers

Push button receipt cover opening

Provides easy access for associates to replace paper.

Environmentally conscious packaging

All packaging materials are recyclable and most are made from recycled post-consumer waste.

Suremark Single Station Rear

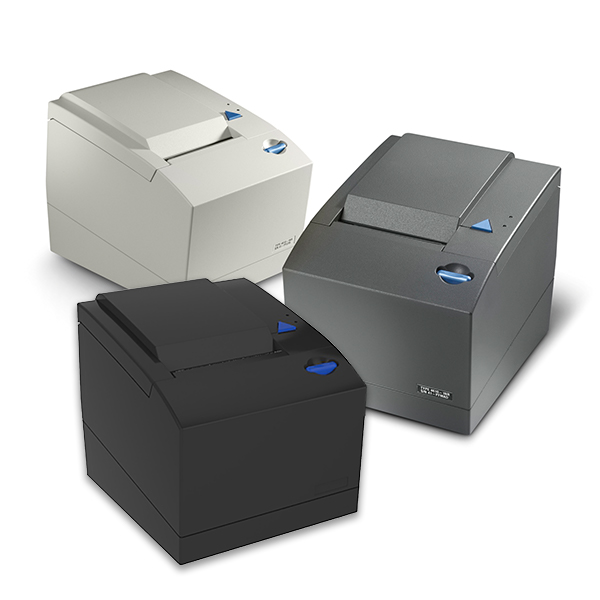

Suremark Single Station Printer

Fast, high-quality thermal receipt printing for food service, specialty and many other retailers.


The world’s premier retail printer

Retailers realize now is the time to drive transformation and make their operations smarter and more competitive. Those who invest in technology that can shrink costs while providing operational efficiencies and integrating “green” principles into their business will be positioned for the future.

For these retailers, the Toshiba SureMark™ single-station printer is the only choice. Built for ultimate retail-hardened performance in demanding environments, the Toshiba SureMark printer delivers speed, reliability and unmatched serviceability and manageability. Plus it offers earth-friendly design and packaging that set new world standards.

Feature Benefits
Fast receipt printing—80 LPS
Toshiba Retail Systems Management, including Remote Management Agent (RMA)
Easy replacement of key assemblies
Systems management sensors
Tool-less snap together design
Ease of use design features
Flexible designs
Open standards platform
Supremely “green”
Streamlined model structure
Easy change covers
Service life 7+ years with parts available 7 more years


Model Availability Character set Single-Pass Check Handling Cover color Warranty service1
1NR Worldwide SBCS and DBCS No Pearl White, Iron Gray or Raven Black Toshiba Advanced Exchange*

1For warranty terms and country coverage, please refer the Statement of Limited Warranty at:

TOSHIBA SureMark Printer at a glance

Model Availability Character Set Single-Pass Check Handling Cover Color Warranty Service*
1NR Worldwide SBCS and DBCS No Pearl White, Iron Gray or Raven Black Toshiba Advanced Exchange*
Models 1NR
Printing Speed:§
Receipt station (one-color paper) 80 lps @ 8 lpi, 60 lps @ 6 lpi
Receipt station (two-color paper) 35 lps @ 8 lpi, 26 lps @ 6 lpi
Printing resolution (thermal) 203 dpi
Memory usage:
Data buffer RAM Dynamic/expandable
Flash memory for microcode 5 MB
Flash memory for offline journal** Up to 3 MB
Flash memory for logos** Up to 3 MB
Flash memory for fixed messages** Up to 3 MB
Flash memory for code pages** Up to 3 MB
Flash memory for user characters 64 KB
Interfaces Powered USB plus standard USB, RS-485, standard RS-232, 10/100 Ethernet , Wireless 802.11 a/b/g/n/ac (external power brick or special power cable required)
CRU (customer replaceable units) with Light-Path management Not available (available only on 4610 dual-station models)
Sensors Paper low, paper out, cutter health, print head health, usage counters, paper jam detection
Mounting options Integrated (Integration tray), Distributed (free standing), optional Wall mount bracket
Support for wide range of receipt media—thickness/type of media 1.6 - 3.7 mil (thousandths of an inch) paper thickness. Factory feature selection of 2.28 in (58 mm) or 3.15 in (80 mm) paper width
Media type supported/roll diameter Receipt paper rolls—maximum 4 in (102 mm) diameter
Physical Dimensions and Weight
“Green” attributes Shipping container and inserts; iron-gray covers made of up to 25 percent post-industrial recycled materials; upgradeable and reusable components; retail-hardened construction for long life
Physical Dimensions and Weight
Dimensions (WxDxH) Width: 5.7 in (145 mm); Depth: 7.0 in (177 mm); Height cover closed: 6.3 in (159 mm); Height cover opened: 10.2 in (260 mm)
Weight Model 1NR: 3.1 lb (1.4 Kg)
Command Sets Native, Epson ESC POS™ Emulation††, Compatibility Mode
Operating systems and driver support‡‡ A compatibility mode is provided in the printers to enable use of existing drivers and applications with only minor modifications. Native mode support is as follows:
Epson compatibility mode Support is provided for RS-232 connected printers using Direct I/O communications only
Resident barcode formats UPC A/E, JAN 8(EAN), Code 39, ITF, Code 93, Code 128 a, b, and c, Codabar, PDF417, QR, GS1 databar
Integration kits SurePOS™ 700 Series
Reliability 150 km—thermal print head life. 1.5 million cuts—cutter life
North America Model 1NR
Latin America Model 1NR
Europe, Middle East, Africa Model 1NR
Asia Pacific Model 1NR

*For warranty terms and country coverage, please refer the Statement of Limited Warranty at:

§ Indicates rated speed. Actual print speed depends on user-specific configuration of interface, application, operating system and drivers.

** A total of 3 MB flash memory can be re-allocated among the following: storage of offline journal, logos, fixed messages, and code pages.

†† Epson emulation mode supports direct communication with the printer using the Epson ESC POS™ command set for printers connected via RS-232 interface (only). Epson emulation is not supported in driver environments.

‡‡ Some printer functions may not be supported by all combinations of operating systems and drivers. See User Guide for more detail."Please visit the Toshiba support website at to obtain the latest compatibility data for operating systems, interfaces and Toshiba hardware. The 1NR printer is supported in compatibility mode in 4690 OS V5R2 but requires package 0900 to support firmware updates."
