Self Checkout System 6

Ease of operation and maintenance

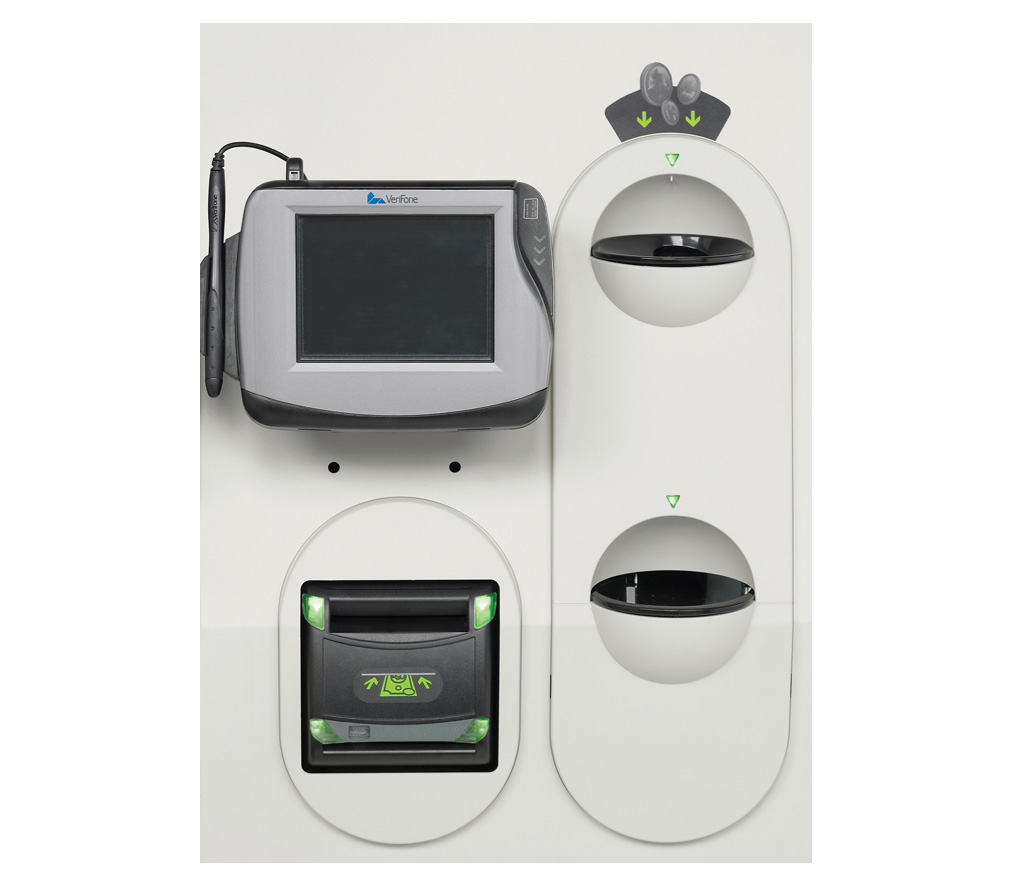

Easy reach of all points of interaction from a single and central location; for example, all payment devices located together within easy reach above the counter-top height for optimal user experience and throughput.

Hardware interactions optimized for speed and intuitive user experience

An example is the printer is located in close proximity to the bagging area so shoppers can quickly take their receipt, pick up their bags, and go. (Also allows quick one-handed replacement of receipt paper roll without requiring access to lane cabinetry.)

Faster, easier, and modular

Toshiba's award-winning Self Checkout System 6 delivers unprecedented flexibility and adaptability with its unique modular design.

Easy to service with fully front-serviceable design

Allows lanes to be placed back-to-back or even against a wall; plus, retail-hardened components & materials throughout.

Reduced distance between scanning and bagging (the most common task at self-checkout)

Helps reduce the time and effort required for consumers to scan and bag each item. System 6 reduces this distance by up to 36% compared to other self-checkout systems.

Intuitive user experience

100 percent of interaction points are located above counter-top height making scanning, bagging and payment fast, easy and convenient.

Accentuated with LED guidance lights

Ensures consumers have a clear understanding of next steps and where they are located.

Optional bill/note recycling

Reduces lane float levels and reduces labor required to manage cash at self-checkout. (Coin recycling is standard.)

Award-winning modular design

Can speed checkout, optimize floor space, improve cash management and security – all this while delivering real investment protection and a continued focus on quality, reliability, security and compliance standards.

Toshiba Checkout Environment for Consumer-Service (CHEC) software environment

CHEC integrates with any POS application and provides a powerful platform for customization. Plus, with the latest CHEC release, it's easier, faster, and more personalized than ever before -- with more than 20 new features to enhance the customer experience. CHEC is also designed for high availability, minimal interventions, and ease of management from a central location.

Flexibility in checkout configuration

Accommodates any order size with a variety of bagging module options -- including 1 bag, 2 bag, 3 bag, and carousel modules. (Or, remove the bag module entirely for a small form-factor pay station.) Also available: 38" or 66" belted modules for the largest order sizes.

Configuration variety

Cash or cashless; integrated or separation of scanning and payment; or, as a stand-alone payment station for use by mobile shopping users. Payment module includes coin recycling and optional bill/note recycling, plus separate key-lock access for improved security.

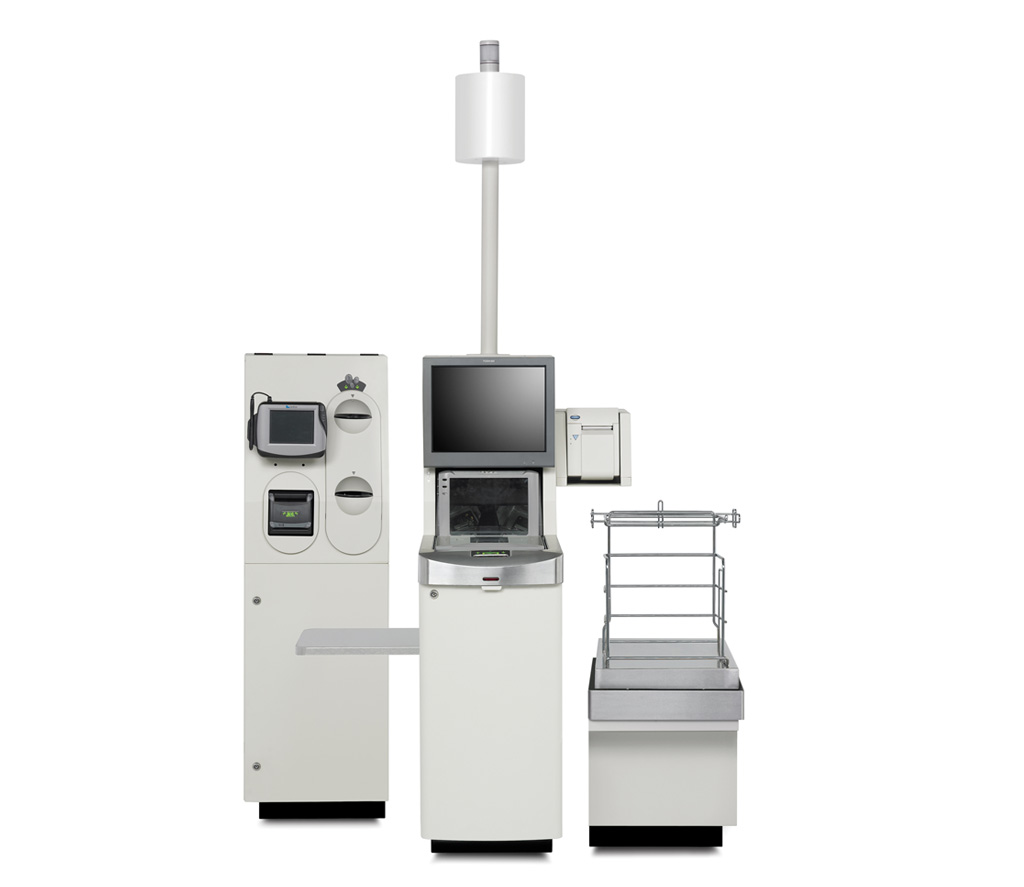

Self Checkout System 6

Now with ability to run on 4690 operating system the Self Checkout System 6 can speed checkout, optimize floor space, improve cash management and security, and offer real investment protection with new enterprise BOSS capabilities that centralize functions at the enterprise level.

Highlights

  • Unique, modular platform with separate scanning, payment and bagging units
  • Award-winning design—based on human factors research—minimizes shopper effort while maximizing checkout throughput
  • Innovative solution helps speed up the checkout process, optimize floor space, improve cash management, and offer real investment protection
  • Powered by Toshiba’s sophisticated and proven CHEC software—now enhanced with more than 20 new features that make self-checkout faster, easier, and more personalized than ever before
  • Leverages Toshiba’s support and services capabilities and proven best practices

Meet the award-winning Toshiba Self Checkout System 6. This innovative self checkout system is designed based on human factors research to create a fast, easy, and intuitive experience for shoppers, while also delivering unprecedented flexibility to retailers. Its innovative modular design, with separate scanning, payment and bagging units, offers retailers a flexible self service solution that can speed checkout, optimize floor space, improve cash management—all while offering real investment protection and a continued focus on quality, reliability, security and compliance standards.

Now supported in 43 countries (and growing), Toshiba’s System 6 is optimized to leverage the powerful—and proven—Toshiba Checkout Environment for Consumer-Service (CHEC) software environment which is loaded with new features that enhance the shopping experience—making self-checkout faster, easier to use, and more personalized than ever before. CHEC is designed for high availability and minimal interventions, which reduces hassles and delays for shoppers. Plus, it's easy to manage, easy to extend, and can integrate with any POS system.



Feature

Benefits

Award-winning modular platform with separate scanning, payment and bagging units

  • Designed based on human factors research to enhance the customer experience with fast, easy, intuitive interactions
  • Gives retailers unprecedented flexibility plus investment protection as store needs continue to evolve
  • Speeds checkout to maximize throughput; reduces footprint to optimize floor space; improves cash management and security

Intuitive experience with 100% of user interaction above counter height, and LED guidance lighting

Minimizes reach distance for the shopper’s most frequently performed task—scanning and bagging

Fast, easy, personalized user interface with Toshiba CHEC software

Easy to manage with proven, extensible software environment

Capability to run on 4690 OS

Centralized reporting and administration capabilities with Enterprise BOSS

Global support and services and eco system of business partners

Best practices for store operations



Cash models (includes scanning module, payment module and bagging option)

Scan & Bag – 1 bag

Scan & Bag – 2 bag

Scan & Bag – 3 bag

Scan & Bag – 4 bag carousel

Belted Lane – 38” belt

Belted Lane – 66” belt

Scanning and Payment





Cashless models (includes scanning module and bagging option)

Scan & Bag – 1 bag

Scan & Bag – 2 bag

Scan & Bag – 3 bag

Scan & Bag – 4 bag carousel

Belted Lane – 38” belt

Belted Lane – 66” belt

Core Scanning Station








Cash models (includes scanning module, payment module, and bagging option):
Description Model
Scan & Bag - 1 bag 4888-E11
Scan & Bag - 2 bag 4888-E12
Scan & Bag - 3 bag 4888-E13
Scan & Bag - 4 bag carousel 4888-E14
Belted Lane - 38" or 66" with dimensional security 4888-E1B
Scanning & Payment Station - no weight security 4888-E1C







Cashless models (includes scanning module and bagging option):
Description Model
Scan & Bag - 1 bag 4888-E01
Scan & Bag - 2 bag 4888-E02
Scan & Bag - 3 bag 4888-E03
Scan & Bag - 4 bag carousel 4888-E04
Belted Lane - 38" or 66" with dimensional security 4888-E0B
Core Scanning Station - no weight security 4888-E0C



System configurations
Lane models
  • Cash and cashless models
  • Scan-and-bag and belted models
  • Microsoft Windows Embedded for Point of Service (WEPOS) and Toshiba 4690 OS models
Core components
  • System unit: Toshiba SurePOS™ 700 series Lane PC
  • Display: Toshiba SurePoint™ flat panel, high-resolution, color touchscreen 15 in. (38 cm)
  • Bill/note acceptors and dispensers standard (cash models), with optional capability for bill/note recycling
  • Coin recycling standard (cash models); new bulk coin input capability; new coin hopper eliminates extra transport chutes
  • Separate payment module access to improve security
  • Bill and coin dispenser sensor detects forgotten change
  • Personal identification number (PIN) pads
  • Supports Toshiba SureMark™ Printer options
  • Supports electronic marketing and Catalina coupons
  • Optional feature components available
Dimensions
  • All units are modular with uniform height of 32 in. (81 cm) and width of 35 in. (89 cm)
  • One, two-, three- and six-bag options available; total lane lengths can range from 125 in. to 177 in. (318 cm to 450 cm). Various belt lengths available.
Software
Lane environment

Toshiba CHEC lane application components:

  • IBM DB2 Express Edition software
  • Toshiba Remote Management Agent software
  • Toshiba Store Integrator, including Store Integrator GUI and POS Business Component software
  • Software developer toolkit (Windows only)

Operating system:

  • Toshiba CHEC models: WEPOS software preload or 4690 OS Enhanced Terminal

Language:

  • Multiple language support
Toshiba Back-Office System Server (BOSS) environment

Toshiba CHEC back-office application components:

  • IBM WebSphere Application Server software
  • Toshiba DB2 software
  • Toshiba Remote Management Agent software

Operating system:

  • Toshiba BOSS for Toshiba CHEC models/BW4: Microsoft Windows Server 2008
  • For Enterprise BOSS: Microsoft Windows Server 2008 R2 (64-bit) or Windows Server 2012 R2
POS integration
Mobile terminal software
Toshiba 4690 Premium Enablement for Netop®
(per terminal)
  • Provides the infrastructure required to run Netop® Remote Control of the TGCS 4690 OS terminals and Self-Checkout Lanes. Enables Netop® Host to provide a full graphic remote control UI, access to enhanced controls and supplemental menus, PCI-compliant logging and complete screen recordings, and central governance of access rights and security policies. On the 4690 CHEC Terminal you have the capabilities for Mouse Remote Control, View and Capture Video of Operational Screen flows, and entering into Shopper Assistance Screens. (Requires: 4690 OS V6R5 CSD – 0HL0, CHEC 6.8 or CHEC 6.7 CSD 8 or higher)
